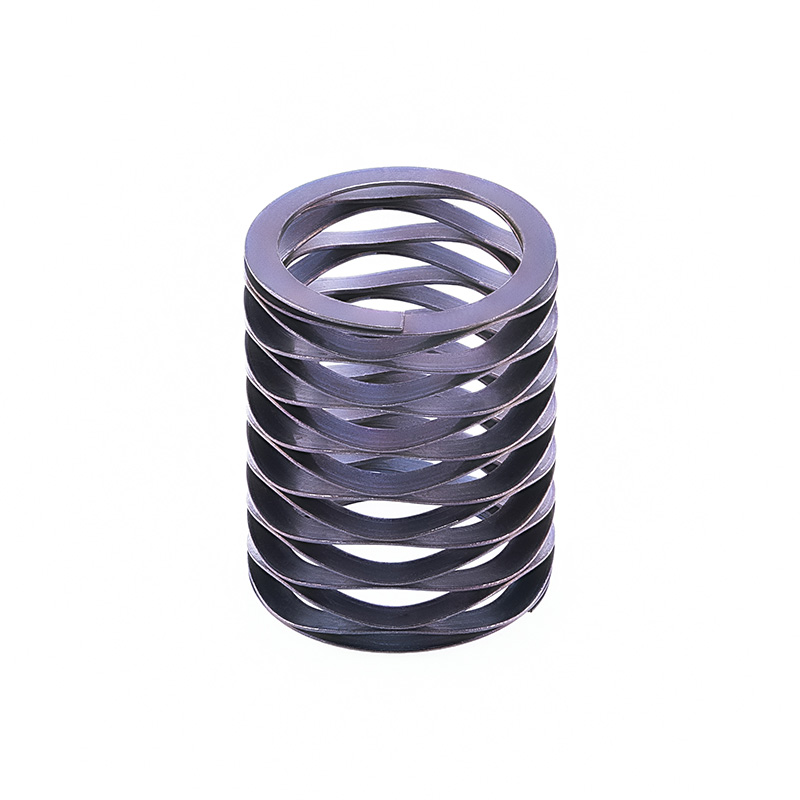

Wave washers, also known as wave spring washers or simply wave springs, are essential mechanical components that play a crucial role in various industrial applications. These versatile washers are designed with a unique wave-like shape, allowing them to provide a flexible and reliable solution for fastening and connecting components. In this article, we will explore the features, benefits, and applications, showcasing their importance in the world of mechanical engineering.
Benefits of Wave Washers:
- Spring Action: It acts as springs, offering a controlled amount of elasticity to prevent loosening and absorb shocks and vibrations in dynamic applications.
- Load Distribution: The wave shape of the product enables even distribution of forces over the mating surfaces, reducing the risk of damage and enhancing the overall performance of the assembly.
- Space Efficiency: They are compact and lightweight, making them ideal for applications with limited space or where reducing weight is crucial.
- Cost-Effective: Compared to other fastening solutions, it is relatively inexpensive, offering a cost-effective means of ensuring a secure connection.
- Reusable: They can be used multiple times without loss of performance, providing long-lasting reliability and value.
- Shock Absorption and Damping: Due to their elastic properties, the product can absorb shocks and vibrations, reducing the impact forces generated by motion and vibrations, thus protecting connected components and equipment.
- Self-Adjustment Capability: They have the ability to adapt to different mating surfaces, especially on irregular or uneven surfaces, providing a uniform distribution of pressure.
- Compact Size: Compared to traditional washers or coil springs, arandela de ondas offer a more compact solution, allowing for fastening and connection in limited spaces, saving valuable installation space.
- High Fatigue Resistance: Made from elastic materials, the washers exhibit high fatigue resistance, allowing them to be used multiple times without compromising their performance and elastic recovery.
- Versatility: They are suitable for various applications, including automotive, aerospace, electronics, industrial equipment, and more, catering to different connection needs in diverse industries.
In conclusion, as the unique elastic washers, demonstrate superior performance in various aspects. Their elastic recovery, shock absorption, damping capabilities, adaptability to different surfaces, and compact size make them vital components in engineering diseño and assembly. It offers a reliable and cost-effective solution for connections and fastening, ensuring stable and long-lasting connections across a wide range of applications.
Characteristics of Wave Washers:
- Wave-like Shape: It derives their name from their distinct wave-like shape, composed of a series of crests and troughs. This special design allows the washer to deform elastically when compressed or under load, providing a resilient force to maintain a tight connection between components.
- Spring Functionality: The wave structure of the washer grants it spring-like properties, enabling it to absorb shocks, dampen vibrations, and cushion impacts, thereby enhancing the stability and durability of mechanical systems.
- Even Load Distribution: The wave pattern of the washer ensures uniform force distribution over the mating surfaces, reducing localized stress concentrations and preventing damage or deformation of the components.
- Space-Saving: Due to its compact shape, it offers elastic support and fastening capabilities in applications with limited space constraints.
- Multi-functional Applications: They find widespread use across various industries, including automotive, aerospace, electronics, and industrial machinery, performing functions such as connection, fastening, adjustment, and cushioning.
- Easy Installation: The design facilitates easy installation, often placed directly on threaded shafts or within assemblies, requiring no special tools.
- Cost-Effective: Compared to other fasteners or spring components, it is relatively low-cost, providing a cost-efficient solution.
In summary, wave washers are versatile and efficient mechanical components, offering reliable connections, stable performance, and extended longevity. They play an indispensable role in various engineering applications, making them vital components in many industries.
Applications of Wave Washers：
- Fastener Seating: The product is commonly used as washers for bolts, nuts, threaded connections, and other fasteners. They provide elastic support during the fastening process, ensuring a tight connection between components and maintaining stability at the connection point. The flexibility of the washers allows them to compensate for uneven surfaces, preventing loosening and slippage.
- Shock Absorption and Anti-loosening: In mechanical equipment and industrial machinery, they are employed for shock absorption and to prevent fasteners from coming loose. In cases of vibration or impact, the elastic deformation of the product absorbs energy and mitigates vibration, reducing the impact load on mechanical components.
- Water Sealing: Due to the wave-shaped structure, arandela de ondas offer improved sealing performance, effectively preventing the leakage of liquids and gases. Therefore, they are widely used in applications requiring water-tight seals.
- Pressure Adjustment: The compressibility and resilience of the washers make them suitable for pressure adjustments in systems or devices. By selecting the product of different materials and thicknesses, various pressure control requirements can be met.
- Self-compensating Washers: In applications where fasteners may experience loosening due to thermal expansion or vibrations, it can act as self-compensating washers. They can adjust the gap between fasteners, ensuring a tight connection even during temperature changes or vibrations.
- Electrónico productos: It also find widespread use in electronic products, such as fixing circuit boards and connecting relays. Their efficient elastic properties and space-saving design make it indispensable in the electronics industry.
In summary, wave washers play a crucial role in mechanical connections, shock absorption, sealing, and pressure adjustment. Their versatility and reliability make them essential elastic components in many industrial applications. Whether in automotive, machinery manufacturing, electronics, aerospace, or other fields, they are pivotal in providing secure and reliable connections and performance.
Selection Criteria for Wave Washers：
- Load Requirements: Determine the required load range and stress level and choose a right one that can meet these demands. Different products have varying load-bearing capacities, so ensure the selected washer is suitable for the specific load requirements of the application.
- Elasticity Performance: Consider the washer’s elasticity to ensure it provides appropriate elastic recovery and resilience. The elasticity directly impacts the tightening force and reliability of the connection.
- Size and Shape: Select the correct size and shape of the product that fits the connection point. Ensure the washer matches the dimensions of the bolts, nuts, or connecting components to ensure proper contacto and stability.
- Material Selection: They are typically made of stainless steel or alloy steel, which offer corrosion resistance and wear resistance. Depending on the application environment, choose the suitable material to ensure long-term stable performance.
- Operating Temperature: Consider the working temperature range of the connection point and choose an appropriate washer material and design to ensure stability and reliability in high or low-temperature environments.
- Thickness and Wave Structure: The thickness and wave structure of the washer affect its elasticity and load-bearing capacity. Choose the appropriate thickness and wave structure to meet the specific connection requirements.
- Fatigue Resistance: For applications with prolonged use and frequent loading, select wave washers with good fatigue resistance to ensure reliability under cyclic loads.
- Environmental Compliance and Standards: Choose the washers that meet environmental requirements and relevant industry standards. Ensure the selected washer materials are free from harmful substances and comply with international and national regulations.
In summary, the selection criteria for wave washers include load requirements, elasticity performance, size and shape, material selection, operating temperature, thickness and wave structure, fatigue resistance, and environmental compliance and standards. Choosing the right one that suits the specific application will ensure secure connections and optimal performance, providing a reliable long-term solution.
Maintenance of Wave Washers：
Proper maintenance is crucial to ensure the normal functionality and extended lifespan. Although the product themselves do not require much complicated maintenance, correct installation and regular inspection are essential to maintaining consistent performance.
- Regular Inspection: Periodically inspect washers to ensure that their surfaces are free from severe wear, cracks, or deformations. If any damage or anomalies are found, promptly replace the washer.
- Cleaning and Anti-Corrosion Treatment: Before installing the washers, clean the mating surfaces to ensure they are free from dirt and impurities. If using stainless steel washers, particularly in damp or corrosive environments, consider applying anti-corrosion treatment to prolong their lifespan.
- Appropriate Installation Force: During installation, avoid over-tightening or leaving the washer too loose. Applying the correct installation force ensures that the washer can provide the appropriate elasticity and proper fastening effect.
Avoid Over-Compression: Wave washers possess a certain level of elasticity, and over-compression may lead to loss of their original shape and elasticity. Choose the appropriate washer type and thickness according to the application requirements to avoid over-compression.
Avoid Over-Bending: Over-bending washers should also be avoided, as it may affect their elasticity and performance. Ensure the washer is not excessively squeezed or bent during installation.
- Avoid Repeated Use: Although the washers are generally reusable, frequent reuse may cause a decline in their performance. It is recommended to replace the wave washers when replacing bolts or nuts to ensure the reliability of the connection.
En conclusión, arandela de ondas are simple yet effective mechanical connection solutions, and with proper usage conditions, they can have a long lifespan. Correct installation and regular inspection are key to maintaining the performance and longevity of wave washers. By choosing the appropriate washer type, applying the right installation force, and avoiding over-compression and over-bending, it can continue to provide elasticity and stability, ensuring reliable connections. Adhering to maintenance recommendations will help keep them in good condition, ensuring smooth and safe operation of engineering equipment and machinery.
